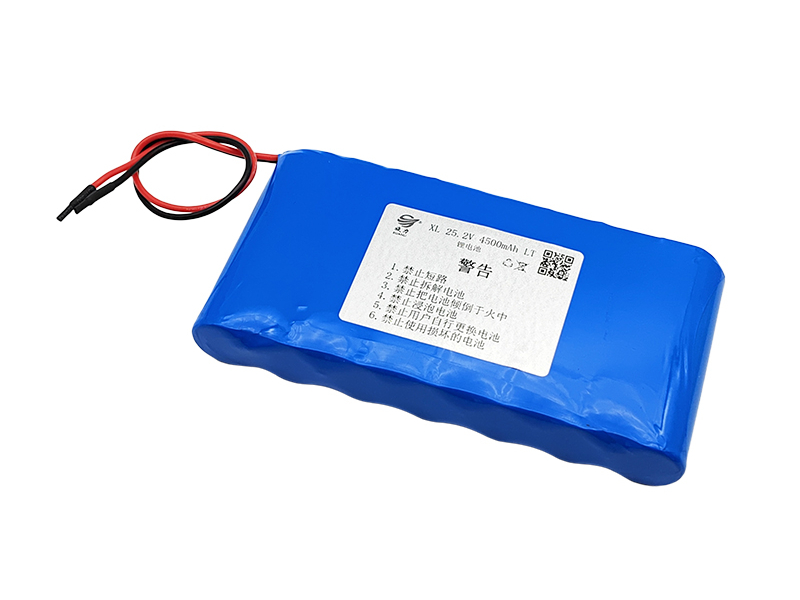

25.2V cylindrical lithium battery Model: XL 25.2V 4500mAh
25.2V cylindrical lithium battery technical parameters (specific design according to customer requirements - voltage/capacity/size/line)
Single battery model: 26650
· Single battery voltage: 3.6V
· Nominal voltage after battery pack combination: 25.2V
· Battery capacity: 4.5Ah
· Battery combination: 7 series and 1
· Combined battery voltage range: 17.5v-29.4v
· Combined battery capacity: 3.5Ah
· Battery power: 113.4Wh
· Battery pack size: 19*130*68mm
· Maximum discharge current: <4.5A
· Instantaneous discharge current: 9A-13.5A
· Maximum charging current: 0.2-0.5c
· Charge and discharge times: > 500 times
· Main chips: (Seiko, TI)
25.2V cylindrical lithium battery
· Meet the relevant national battery standards and requirements
· All finished batteries are calibrated and tested before leaving the factory and can be used directly.
